Installing coolant feed line for exhaust turbocharger

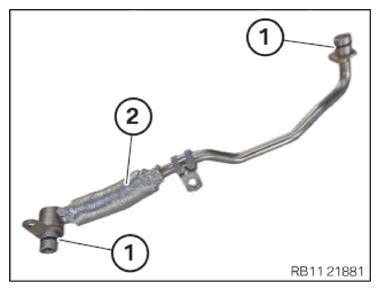

• Using the special tool 0 496 714 (00 9 030)  , replace the sealing rings (1) on the coolant feed line (2).

  Parts:  Sealing rings

  Courtesy of BMW OF NORTH AMERICA, INC.

• Using the special tool 0 496 714 (00 9 030)  , replace the sealing rings (1) on the coolant return line (3).

  Parts:  Sealing rings

• Check the sealing rings (2) on the coolant return line (3) for damage; if necessary replace the coolant return line (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

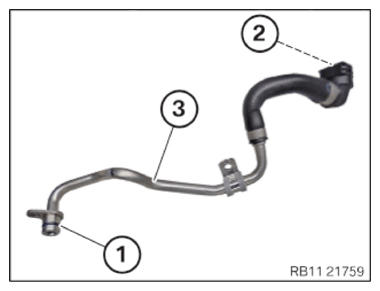

• Using the special tool 0 496 714 (00 9 030)  , replace the sealing rings (1) and (2) on the oil feed line (3) for the exhaust turbocharger.

  Parts:  Sealing rings

  Courtesy of BMW OF NORTH AMERICA, INC.

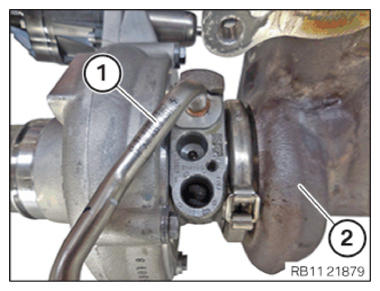

• Insert and position the coolant feed line (1) for the exhaust turbocharger (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

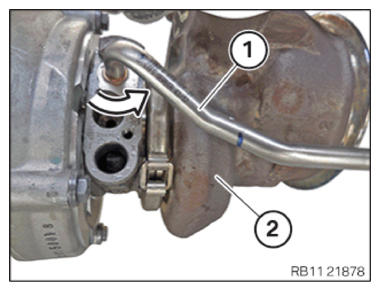

• Rotate the coolant feed line (1) for the exhaust turbocharger (2) in the direction arrowed  .

  Courtesy of BMW OF NORTH AMERICA, INC.

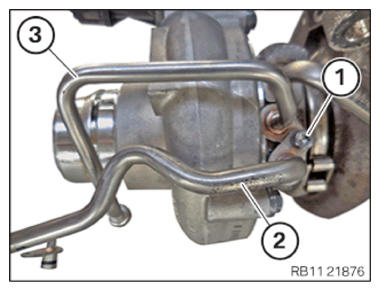

• Insert and install oil feed line (3) for the exhaust turbocharger.
• Insert and install the coolant return line (2) for the exhaust turbocharger.
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING EXHAUST TURBOCHARGER .
• Refer to INSTALLING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING CATALYTIC CONVERTER .
• Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to IF INSTALLED: INSTALL THE TORSION STRUT ON THE RIGHT, AND ON THE LEFT WHERE REQUIRED .
• Refer to INSTALLING THE OXYGEN SENSOR MONITOR .
• Refer to INSTALLING LAMBDA OXYGEN SENSOR .
• Refer to INSTALLING CHARGE AIR LINE .
• Refer to INSTALLING BOTTOM CLEAN AIR PIPE .
• Refer to INSTALLING THE RESONATOR WITH THE TOP CLEAN AIR PIPE .
• Refer to INSTALLING THE INTAKE FILTER HOUSING (TENSION STRUT REMOVED ON SHOCK TOWER) .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to INSTALLING BOTH FRONT-END STRUTS .
• Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to CHECKING ENGINE OIL LEVEL .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING REAR UNDERBODY PROTECTION .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
