Installing the high-pressure rail with injectors of the cylinders 4 to 6

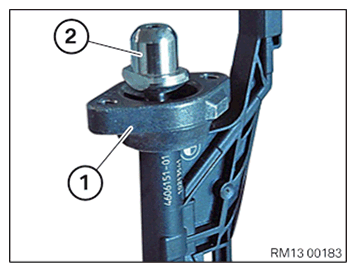

• Mount the holder (1) above the bayonet fitting (2) on the injector.
• If the holder  (1) has a cast lug:  Ensure the correct installation position of the holder.

  Courtesy of BMW OF NORTH AMERICA, INC.

• If necessary, note the position of the cast lug:

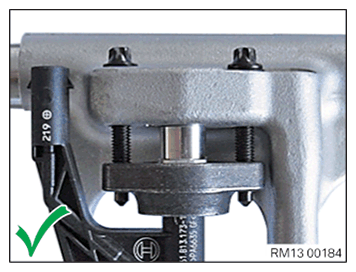

  The holder is correctly  mounted if the cast lug is at the rear.

  Courtesy of BMW OF NORTH AMERICA, INC.

• If necessary note the position of the cast lug:

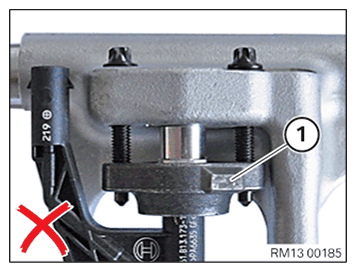

  The holder is incorrectly  mounted if the cast lug (1) is at the front.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Damage to injectors.
  Weld seams on the injector may tear due to incorrect distances between the rail and injector so that the injector must be replaceed.

  • Insertion of the distance gauge is compulsory.
  • Replace distance gauge, if a thickness of 8.5 mm is no longer given in the distance gauge.

  Courtesy of BMW OF NORTH AMERICA, INC.

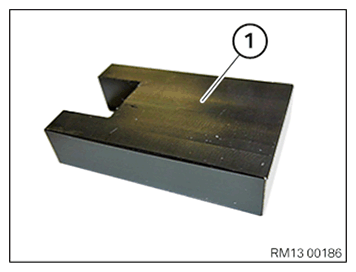

• Use the special tool (distance gauge) 2 358 022  (1).
• Replace (M5x30) screws.

  Parts:  Screws (M5x30)

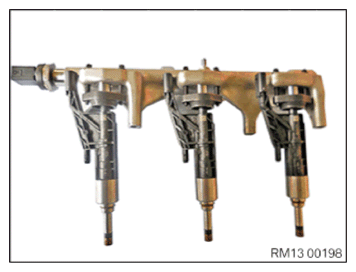

• Mount the injectors with the holders and the bolts (M5x30) (1) on the rail.
• Place the rail on a clean table so that the openings on the rail for the injectors point upwards.

  The electrical injector connections must point towards the fuel pressure sensor.

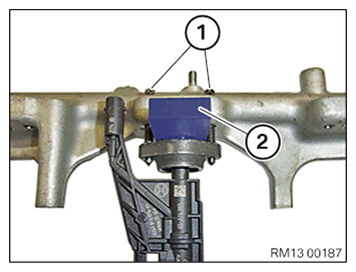

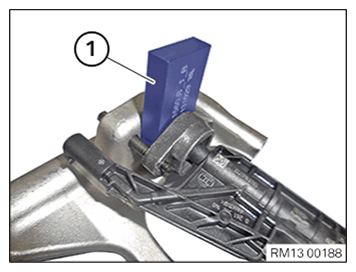

• Slide the special tool (distance gauge) 2 358 022  (2) between the holders and the rail onto the injector head.
• Make sure that the special tool (distance gauge) 2 358 022  (2) rests flat on the retaining bridge.
• Hand-tighten both screws (M5x30) (1) evenly until the special tool (distance gauge) 2 358 022 (2)  rests flat on the rail and the holder.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the special tool (distance gauge)2 358 022  (1).
• Repeat this operation for all injectors.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check injectors for loose fit at the rail.
• Align the electrical injector connections parallel to the rail.

  The injectors must be freely movable.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Change screws (A) to (D).

  Parts:  Screws

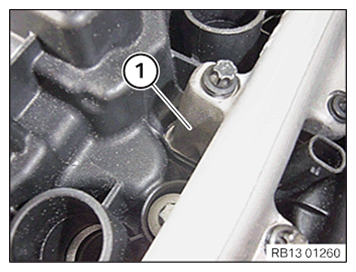

• Attach the rail (1) with the injectors to the cylinder head from the top.
• Make sure that the injector tips fit into the holes provided for that in the cylinder head.
• Make sure that the guides on the injector are correctly inserted into the guide bore holes in the cylinder head.
• Press down until a resistance can be felt; fit the screws (M6x70) (A), (B), (C) and (D) and hand-tighten them.
• Set torque wrench to 2 Nm.
• Tighten the screws (A,) (D), (B) and (C) in alternating order by 90  ° each with the torque wrench until the rail is positioned flush on the cylinder head.

  The illustration shows the rail lying flat on the cylinder head.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  When assembling, it is essential to observe screwing sequences and tightening torques.
  Failure to comply with the regulations can lead to leaks and damage.

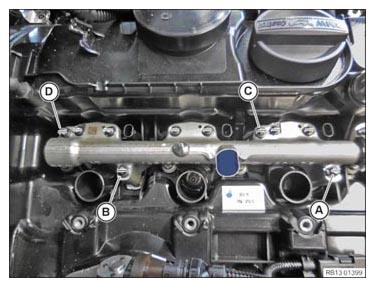

• Tighten screw (A) by 5 Nm.
• Tighten screw (D) by 5 Nm.
• Tighten screw (B) by 5 Nm.
• Tighten screw (C) by 5 Nm.
• Make sure that the rail (1) rests flat against the cylinder head.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert a wrench socket set into an extension.

  Do not use a reversible ratchet or torque wrench.

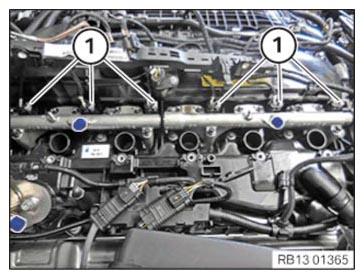

• Tighten the bolts (M5x30) in pairs ((1) with (2), (3) with (4), (5) with (6)) in alternating order 90° hand-tight  .
• Set torque wrench to 5 Nm.
  NOTE: TECHNICAL INFORMATION
  When assembling, it is essential to observe screwing sequences and tightening torques.
  Failure to comply with the regulations can lead to leaks and damage.
  Fig 1: Rail, Injector Bolts Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.

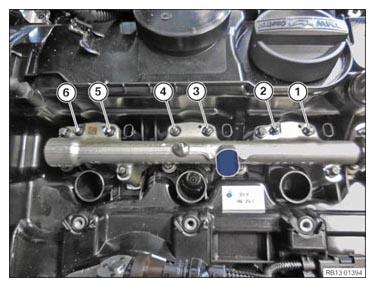

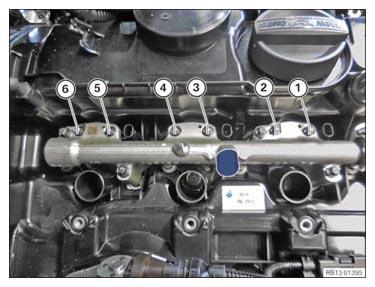

• Screw the (M5x30) screws according to the following scheme:
  • Fuel injector 4:
  • Tighten screw (1) at an angle of rotation of 90° ±15° with the torque wrench.
  • Tighten screw (2) at an angle of rotation of 90° ±15° with the torque wrench.
  • Repeat the steps for screws (1) and (2) until 5 Nm is reached for both screws.
  • Fuel injector 5:
  • Tighten screw (3) at an angle of rotation of 90° ±15° with the torque wrench.
  • Tighten screw (4) at an angle of rotation of 90° ±15° with the torque wrench.
  • Repeat the steps for screws (3) and (4) until 5 Nm is reached for both screws.
  • Fuel injector 6:
  • Tighten screw (5) at an angle of rotation of 90° ±15° with the torque wrench.
  • Tighten screw (6) at an angle of rotation of 90° ±15° with the torque wrench.
  • Repeat the steps for screws (5) and (6) until 5 Nm is reached for both screws.
• Mark all bolts (1) to (6) with a vertical line (see figure).
• Tighten screws using an angle of rotation.
  • Tighten the screw (1) with an angle of rotation of 90° ±15°.
  • Tighten the screw (2) with an angle of rotation of 90° ±15°.
  • Tighten the screw (3) with an angle of rotation of 90° ±15°.
  • Tighten the screw (4) with an angle of rotation of 90° ±15°.
  • Tighten the screw (5) with an angle of rotation of 90° ±15°.
  • Tighten the screw (6) with an angle of rotation of 90° ±15°.
• Check if all bolts (1) to (6) have been tightened with a 90° ±15° angle of rotation.

  All markings (lines) must be horizontal (see Figure).

  Fig 2: Rail, Injector Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
  Fig 3: Rail, Injector Bolts Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.

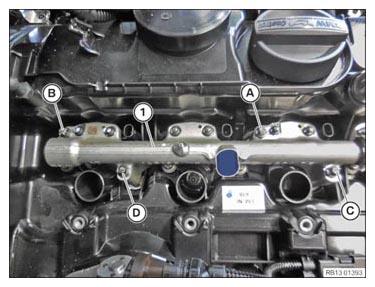

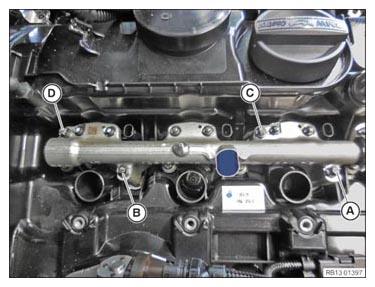

• Release bolts (M6x70) (A) to (D).

  The screws must be released.

  NOTE: TECHNICAL INFORMATION
  When assembling, it is essential to observe screwing sequences and tightening torques.
  Failure to comply with the regulations can lead to leaks and damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screw (A) by 5 Nm.
• Tighten screw (D) by 5 Nm.
• Tighten screw (B) by 5 Nm.
• Tighten screw (C) by 5 Nm.
• Mark all the bolts (A) to (D) with a vertical line (see Figure).
• Tighten bolts (M6x70) (A) to (D) with an angle of rotation of 90°.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check if all screws (A) to (D) were tightened with an angle of rotation of 90°.

  All markings (lines) must be horizontal (see Figure).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock all connectors (1) to the injectors.

  All connectors (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

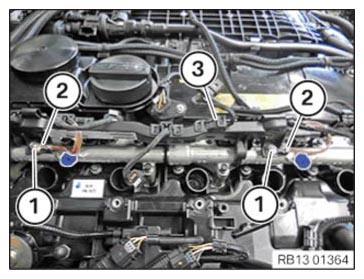

• Thread in cable channel (3) and install.
• Thread in ground cable (2) and install.
• Tighten nuts (1).
  TIGHTENING TORQUES SPECIFICATION



  Ground cable to rail
  M6	Tightening torque	5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE HIGH-PRESSURE LINE BETWEEN THE HIGH-PRESSURE PUMP AND THE HIGH-PRESSURE RAIL .
• Refer to INSTALL ALL IGNITION COILS .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALL THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to RESET ULTRA-SMALL QUANTITY ADAPTATION .
