Installing the hydraulic valve for the oil pressure control

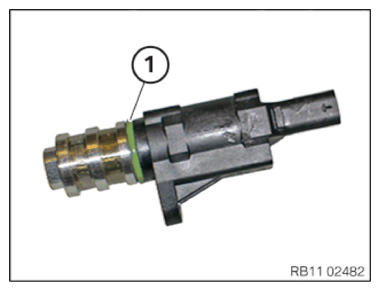

• Check the O-ring (1) for damage.
• If necessary, replace the hydraulic valve.

  Courtesy of BMW OF NORTH AMERICA, INC.

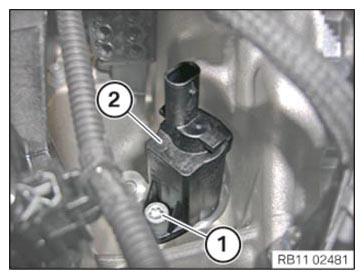

• Install the hydraulic valve (2).
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Hydraulic valve to crankcase
  M6x18	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

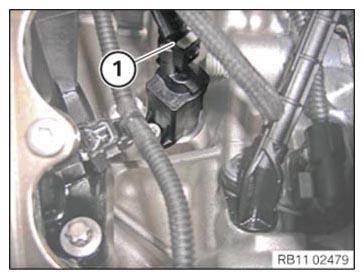

• Connect connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

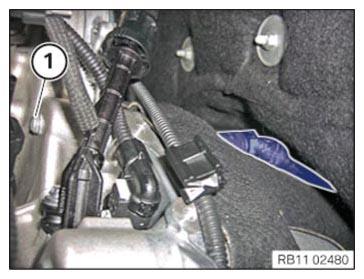

• Tighten the transmission bolt (1).
  TIGHTENING TORQUES SPECIFICATION



  Transmission to engine
  M12x100	Tightening torque	66 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE COMPLETE FULL-FLOW OIL FILTER .
• Refer to PREPARING THE THERMOSTAT FOR INSTALLATION .
• Refer to INSTALLING THE THERMOSTAT ON THE TRANSMISSION OIL LINES .
• Refer to INSTALLING THE INTAKE PLENUM .
• Refer to INSTALLING CONTROL UNIT BRACKET .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING THE TANK VENT VALVE .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
• Refer to INSTALLING CHARGE AIR LINE .
• Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to CONNECTING THE COOLANT LINE OF HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to INSTALLING CLEAN AIR PIPE .
• Refer to INSTALLING RESONATOR .
• Refer to TIGHTENING THE OIL FILTER CAP .
• Refer to TOPPING UP THE MOTOR OIL .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
• Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
• Refer to INSTALLING THE REAR THRUST FIELD .
• Refer to INSTALLING REAR UNDERBODY PROTECTION .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to CHECKING ENGINE OIL LEVEL .
