Checking the timings of the camshaft
WARNING:
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trainee and technically experienced personnel.
- For additional information see:
- For additional information see:
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
WARNING:
Working on fuel system.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
WARNING:
On releasing high pressure line, fuel may emerge at high speed.
Injury hazard!
Injury hazard!
- Wear suitable personal protective equipment.
- Before performing any installation work, allow cooling system to cool down to less than °C.
- Note warnings on cylinder head cover.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COWL COVER .
- Refer to REMOVING TRAILING LINK AT SPRING BOLT .
- Refer to REMOVING THE CENTER COWL UPPER PART .
- Refer to LOOSENING HIGH-VOLTAGE CABLES ON THE ELECTRICAL MACHINE ELECTRONICS .
- Refer to REMOVING ACOUSTIC COVER AT REAR .
- Refer to REMOVING LEFT SEALING FRAME .
- Refer to REMOVING THE CENTER BULKHEAD LOWER PART .
- Refer to REMOVING RESONATOR .
- Refer to REMOVING CHARGE AIR LINE .
- Refer to REMOVING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
- Refer to REMOVING THE CYLINDER HEAD COVER ACOUSTIC COVER .
- Refer to REMOVING ALL IGNITION COILS .
- Refer to REMOVING THE HIGH PRESSURE LINE BETWEEN THE HIGH PRESSURE PUMP AND THE RAIL .
- Refer to REMOVING THE RAIL WITH INJECTORS .
- Refer to REMOVING FUEL DELIVERY LINE .
- Refer to REMOVING HIGH PRESSURE PUMP .
- Refer to REMOVING BOTH ACTUATORS .
- Refer to REMOVING THE CYLINDER HEAD COVER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING REAR THRUST FIELD .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THE THERMOSTAT FROM THE TRANSMISSION OIL LINES .
- Refer to REMOVING THE HOLDER FOR THE THERMOSTAT ON THE TRANSMISSION OIL LINE .
- Keep set of special tools 2 456 372 at hand:
Number Description 1 Basic carrier 2 Setting gauge for adjusting the intake camshaft 3 Setting gauge for adjusting the exhaust camshaft 4 Screws of the basic carrier on the cylinder head 5 Screws of the gauge on the basic carrier - Check the test gauges from the set of special tools 2 358 122 for completeness:
Number Description 1 Test gauges for fixing in place the intake camshaft 2 Test gauges for fixing in place the exhaust camshaft NOTE: RISK OF DAMAGE
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.

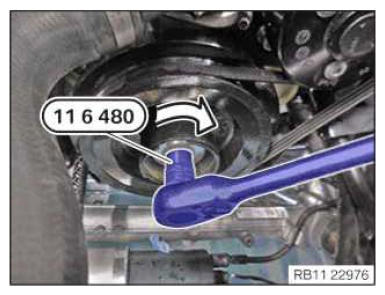

* Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive, b) applies only if the timing chain is installed in the rear. - With the special tool 0 493 380 (116 480) turn the engine In arrow direction to the TDC firing position of cylinder 1.
- Make sure the marks (1) on the intake camshaft (E) and the exhaust camshaft (A) are legible from above.
- Make sure the can (1) on the exhaust camshaft on cinder 1 is pointing slightly to the inside right at an angle.
- Make sure the cam (1) on Intake camshaft on cylinder 1 is pointing leftwards at an angle.
- Make sure that the flat sections (1) on the intake and exhaust camshafts point upwards.
- Position the basic carrier (1) from the set of special tools 2 456 372 on the cylinder head.
- Tighten the screws (1) from special tool set 2 456 372 on the basic carrier (2).TIGHTENING TORQUES SPECIFICATION
Basic carrier to cylinder head M6 Tightening torque 8 Nm - Position the test gauge (1) from the set of special tools 2 358 122 between the intake camshaft and the basic carrier from the set of special tools 2 456 372.
- Position the test gauge (2) from the set of special tools 2 358 122 between the exhaust camshaft and the basic carrier from the set of special tools 2 456 372.
- Tighten the screws (arrows).TIGHTENING TORQUES SPECIFICATION

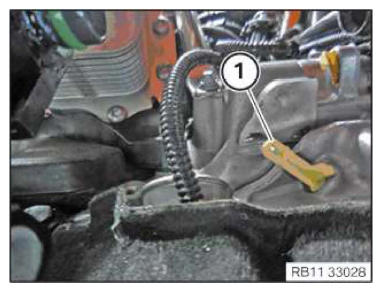

Test gauge to basic carrier M6 Tightening torque 8 Nm - Guide out and remove sealing cap (1).

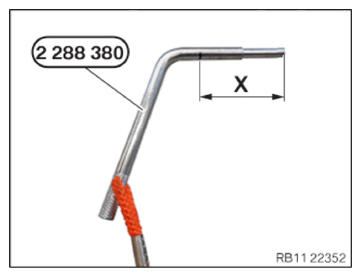

- Make sure the right special tool 2 288 380 is resting correctly on the lock support up to dimension (X).
Dimension (X) = 55 mm

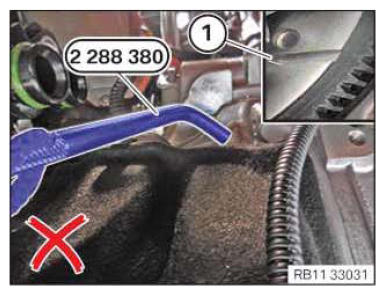

- Check whether the correct dimension has been reached
The special tool 2 288 380 Is incorrectly positioned.
The TDC firing position (1) of cylinder 1 not achieved.

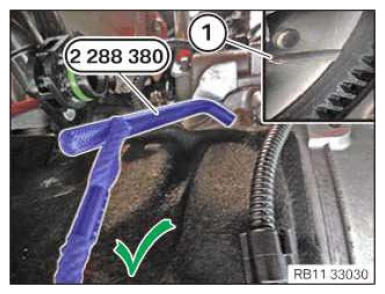

- Check whether the correct dimension has been reached
The special tool 2 288 380 is correctly positioned.
The engine is in TDC firing position (1) of cylinder 1.
Follow-up work
- Refer to INSTALLING THE HOLDER FOR THE THERMOSTAT ON THE TRANSMISSION OIL LINES .
- Refer to INSTALLING THE THERMOSTAT ON THE TRANSMISSION OIL LINES .
- Refer to INSTALLING CYLINDER HEAD COVER .
- Refer to INSTALLING BOTH ACTUATORS .
- Refer to PREPARING THE INJECTORS FOR INSTALLATION .
- Refer to INSTALLING THE RAIL WITH INJECTORS .
- Refer to INSTALLING HIGH PRESSURE PUMP .
- Refer to INSTALLING THE HIGH-PRESSURE LINE BETWEEN THE HIGH-PRESSURE PUMP AND THE HIGH-PRESSURE RAIL .
- Refer to INSTALLING FUEL DELIVERY LINE .
- Refer to INSTALLING ALL IGNITION COILS .
- Refer to INSTALLING THE CYLINDER HEAD COVER ACOUSTIC COVER .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
- Refer to INSTALLING CHARGE AIR LINE .
- Refer to INSTALLING RESONATOR .
- Refer to INSTALLING CENTER BULKHEAD LOWER PART .
- Refer to INSTALLING LEFT SEALING FRAME .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to FASTENING HIGH-VOLTAGE CABLES ON THE ELECTRICAL MACHINE ELECTRONICS .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to CONNECTING NEGATIVE BATTERY CABLE .
- Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
- Refer to INSTALLING THE REAR THRUST FIELD .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to INSTALLING REAR UNDERBODY PROTECTION .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
