Install eccentric shaft

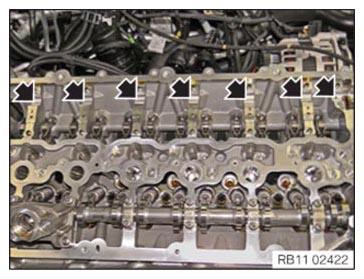

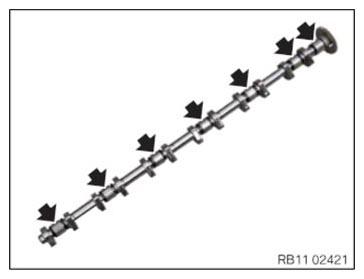

• Check all needle bearings (arrows) of the eccentric shaft for ease of movement.
• If the needle bearings are stiff, replace the eccentric shaft.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean all bearing positions in cylinder head and coat with motor oil.

  Courtesy of BMW OF NORTH AMERICA, INC.

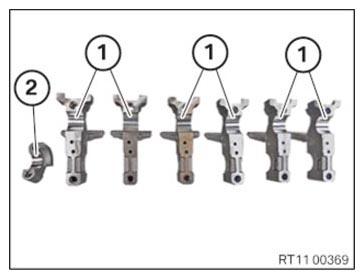

• Clean bearing positions (1) of the bearing brackets and coat with motor oil.
• Clean the bearing position (2) of the bearing cap and coat with motor oil.

  Courtesy of BMW OF NORTH AMERICA, INC.

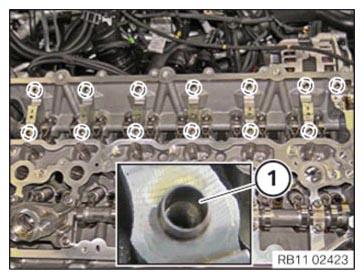

• Check all guide bushings (1) for damage and replace faulty guide bushings (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

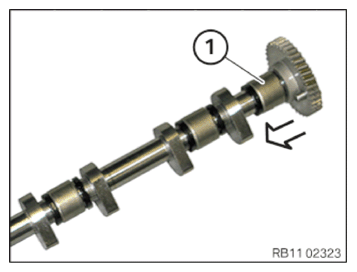

• Slide the needle bearing (1) up to the stop in the arrow direction before installing the eccentric shaft.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Oil all needle bearings of the eccentric shaft (1).
• Insert eccentric shaft (1) into the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Install the bearing bracket.

  All bearing brackets must be installed again in the same position from where they were removed.

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Eccentric shaft to bearing bracket/cylinder head
  M6	Tightening Torque	10 Nm

• Install it with a bearing cap provided with a stop (1).
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Eccentric shaft to bearing bracket/cylinder head
  M6	Tightening Torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
