Removing the complete glass slide/tilt sunroof

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave electrical components in original packaging until just before they are installed. Use the original packaging only for any return shipments. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: 61 35... NOTES for ESD protection (electrostatic discharge)

Preliminary work

Remove the rear left engine compartment COVER
Remove the rear right engine compartment COVER .
Remove left and right WIPER ARM .
Remove panel cover COWL .
Remove the left and right ROOF TRIM STRIP .
Remove the left and right a-pillar TRIM PANEL .
Remove left and right sun visor COUNTER SUPPORTS .
Remove the left and right SUN VISORS
Remove both vanity MIRROR LIGHTS .
Remove the right hands-free MICROPHONE .
Remove the left hands-free MICROPHONE .
Remove the roof FUNCTION CENTER (FZD).
Remove the interior mirror COVERS .
Remove the interior MIRROR .
Remove the KAFAS CAMERA with the integrated control unit.
Disconnect the rain-light-solar-condensation sensor PLUG CONNECTION .
Release front HEADLINING .
Remove rear interior roof LIGHT .
Partially remove top left and right b-pillar TRIM PANELS
Remove both c-pillar TRIM PANELS
Remove all GRAB HANDLES .
Remove the WINDSCREEN .
Remove HEADLINING (with SA403 glass roof).
Remove all holders for the GRAB HANDLES .

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratch, surface damage.

Protect working area.
Handle tools and components carefully.

NOTE: TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For more information see: 51 31... GENERAL PROCEDURE for disassembly/installation of bonded window glass

NOTE: TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: 51 31... Window glass removal using "SPIDER"

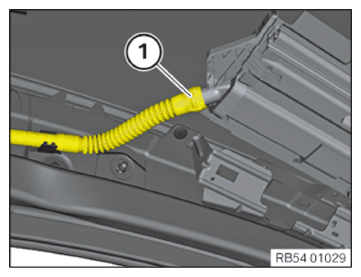

Pull off all four water drain hoses (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

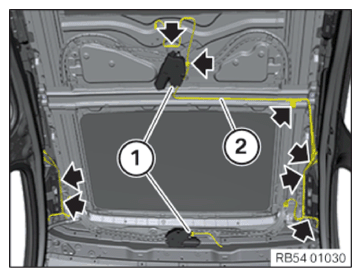

Unlock and disconnect plug connections (1) .
Detach the wiring harness (2) at all cable clips (arrows) and feed it back.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

Secure the glass slide/tilt sunroof from falling down with the help of a second person.

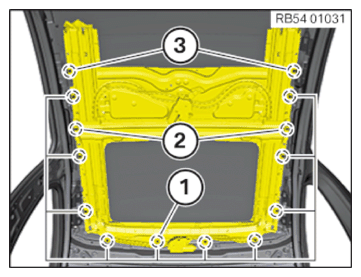

Loosen screws (1) to (3) .
Remove glass slide/tilt sunroof from the vehicle with a helper.

Courtesy of BMW OF NORTH AMERICA, INC.
