Checking the timings of the camshaft
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
WARNING:
Working on fuel system.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
CAUTION:
On releasing high pressure line, fuel may emerge at high speed.
Injury hazard!
Injury hazard!
- Wear suitable personal protective equipment.
- Before performing any installation work, allow cooling system to cool down to less than 40°C.
- Note warnings on cylinder head cover.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COWL COVER .
- Refer to REMOVING TRAILING LINK AT SPRING BOLT .
- Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
- Refer to REMOVING ACOUSTIC COVER AT REAR .
- Refer to REMOVING BOTH ACTUATORS .
- Refer to REMOVING ALL IGNITION COILS .
- Refer to REPLACING SPARK PLUGS (540i 2017-2020) , or REMOVING ALL SPARK PLUGS (540i 2021-2022) .
- Refer to REMOVING FUEL DELIVERY LINE .
- Refer to REMOVING THE HIGH PRESSURE LINE BETWEEN THE HIGH PRESSURE PUMP AND THE RAIL .
- Refer to REMOVING HIGH PRESSURE PUMP .
- Refer to REMOVING THE RAIL WITH INJECTORS OF CYLINDERS 1 TO 3 .
- Refer to REMOVING THE RAIL WITH INJECTORS OF CYLINDERS 4 TO 6 .
- Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
- Refer to REMOVING BOTH FRONT-END STRUTS .
- Refer to REMOVING FRONT CROSS CONNECTION .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE FAN COWL .
- Refer to REMOVING THE INTAKE FILTER HOUSING (TENSION STRUT ON SHOCK TOWER REMOVED) .
- Refer to REMOVING THE RESONATOR WITH THE TOP CLEAN AIR PIPE .
- Refer to REMOVING THE CYLINDER HEAD COVER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Get the set of special tools 2 456 372
ready.

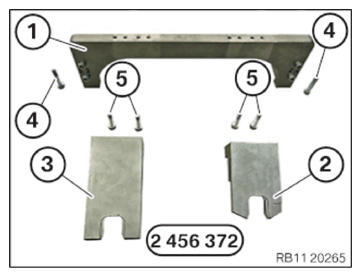

Number Description 1 Basic carrier 2 Setting gauge 0.7° for adjusting the intake camshaft 3 Setting gauge 0.5° for adjusting the exhaust camshaft 4 Basic carrier screws on cylinder head 5 Screw gauge on basic carrier - Provide test gauges from the set of special tools 2 358 122 .
| Number | Description |
|---|---|
| 1 | Test gauges for fixing in place the intake camshaft |
| 2 | Test gauges for fixing in place the exhaust camshaft |

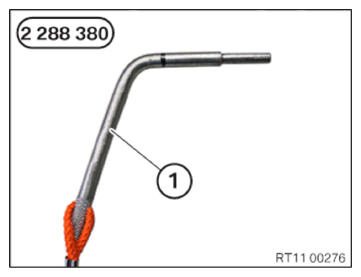

- Have the special tool 2 288 380 ready.
| Number | Description |
|---|---|
| 1 | Locating stud |
NOTE:
RISK OF DAMAGE
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.
- Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive. b) applies only if the timing chain is installed in the rear.

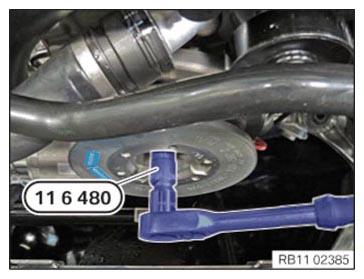

- With the special tool, turn the engine 0 493 380 (11 6 480) to the TDC firing position of cylinder 1.

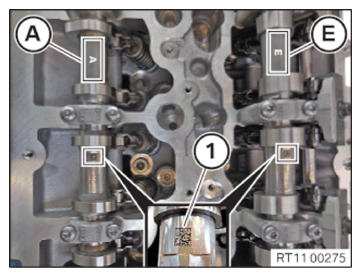

- Make sure the markings (1) on the intake camshaft (E) and the exhaust camshaft (A) are able to be read from above.

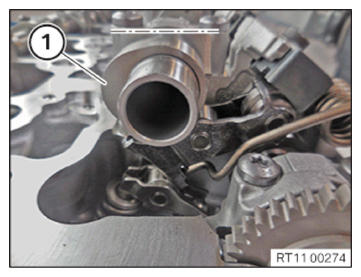

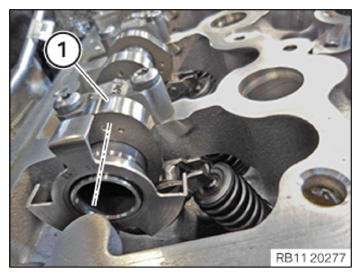

- Make sure the cam (1) on the exhaust camshaft on cylinder 1 is pointing slightly to the inside right at an angle.
- Make sure the cam (1) on the intake camshaft on cylinder 1
is pointing leftwards at an angle.

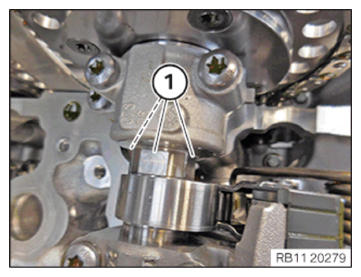

- Make sure the flattened areas (1) on the intake camshaft and the exhaust camshaft are pointing upwards at an angle.

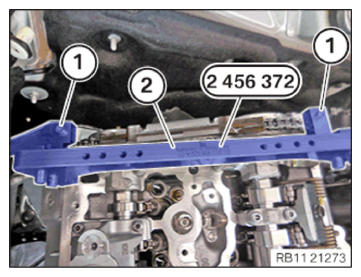

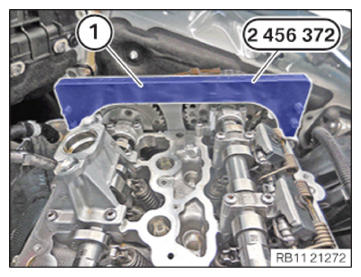

- Position the basic carrier (1) from the set of special tools 2 456 372 on the cylinder head.
- Tighten the screws (1) from special tool set 2 456 372 on the basic carrier (2).
TIGHTENING TORQUES SPECIFICATION
| Basic carrier to cylinder head | ||
| M6 | Tightening torque | 8 Nm |

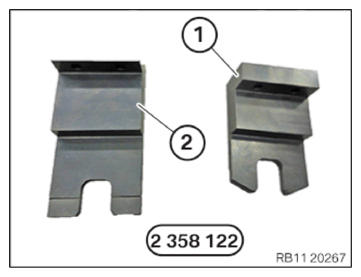

- Position the test gauge (1) from the set of special tools 2 358 122 between the intake camshaft and the basic carrier from the set of special tools 2 456 372 .
- Position the test gauge (2) from the set of special tools 2 358 122 between the exhaust camshaft and the basic carrier from the set of special tools 2 456 372 .
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Test gauge to basic carrier | ||
| M6 | Tightening torque | 8 Nm |

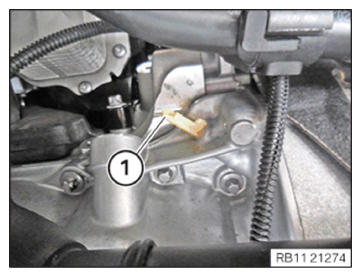

- Guide out and remove sealing cap (1).
- Vehicles with automatic transmission:

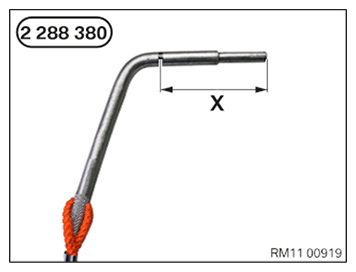

Dimension (X) = 66 mm
Special tool 2 288 380 must be inserted up to dimension (X) into the dowel hole.
- Vehicles with automatic transmission:
Special tool 2 288 380 incorrectly positioned.
TDC firing position of cylinder 1 not achieved.
- Vehicles with automatic transmission:

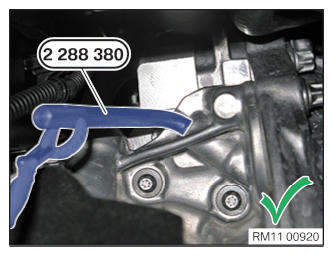

Special tool 2 288 380 correctly positioned.
Engine is in TDC firing position of cylinder 1.
