Install timing case cover, bottom

Mounting the beaded metal gaskets

• Clean sealing surfaces (2).
• Replacing the beaded metal gaskets (1).
• Securing the beaded metal gaskets (1) with the timing case cover screws.
• For timing case cover or timing chain replacement:

  Loosen screw (3).

  Remove jump guard (4).

  Position jump guard (4).

  Tighten down screw (3).

  TIGHTENING TORQUES SPECIFICATION



  Jump guard
  M6x25	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• For timing case cover or timing chain replacement:

  Release and remount the coolant temperature sensor (1).

  Tighten the coolant temperature sensor (1).

  TIGHTENING TORQUES SPECIFICATION



  Water/oil temperature sensor
  Sensor M12x1.5	Tightening torque	18 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

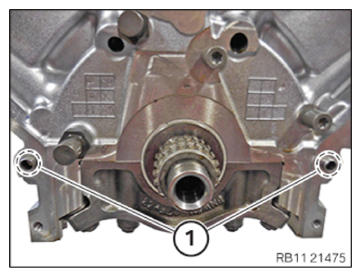

• The centering pins (1) must not be damaged, replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• (1) Clean sealing surfaces.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Tightening the screw connection 1 on the front timing case cover

• Position the timing case cover.
• Tighten screws in the order (1) to (2).
  Fig 1: Timing Case Cover Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.

  Securing the screw connection 2 on the front timing case cover

• Tighten screws in the order (3) to (9).
  Fig 2: Front Timing Case Cover Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.

  Mounting the screw connection 3 on the front timing case cover

• Position the carrier plate (1).
• Tighten screws in the order (10) to (12).
  Fig 3: Carrier Plate Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
• Connect and lock the plug connection (1) to the coolant temperature sensor (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
