Replace cylinder head gasket

Identify the cylinder head gasket (1) using the part number.

NOTE: If the cylinder head is reworked, then a 0.3 mm thicker seal is available for the service.

Courtesy of BMW OF NORTH AMERICA, INC.

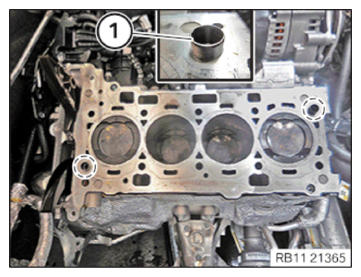

Check the fitting sleeves (1) in the marked area for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in the cylinder head gasket (1) in the marked area and install.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE CYLINDER HEAD .
Refer to ADJUSTING THE CAMSHAFTS WITH THE SPECIAL TOOL .
Refer to INSTALLING THE INTAKE ADJUSTER .
Refer to INSTALLING THE VANOS CENTRAL VALVE OF THE INTAKE ADJUSTER .
Refer to INSTALL EXHAUST CAMSHAFT ADJUSTER .
Refer to INSTALLING THE VANOS CENTRAL VALVE OF THE EXHAUST CAMSHAFT ADJUSTER .
Refer to PRE-TENSIONING THE TIMING CHAIN WITH THE SPECIAL TOOL .
Refer to TIGHTENING THE VANOS CENTRAL VALVE OF THE EXHAUST CAMSHAFT ADJUSTER .
Refer to TIGHTENING THE VANOS CENTRAL VALVE OF THE INTAKE ADJUSTER .
Refer to DISASSEMBLING ALL SPECIAL TOOLS
Refer to INSTALL CHAIN TENSIONER .
Refer to CHECKING THE TIMINGS OF THE CAMSHAFT .
Refer to INSTALLING THE HEAT SHIELD ON THE CYLINDER HEAD
Refer to INSTALL COOLANT LINE BETWEEN THE COOLANT PUMP AND CYLINDER HEAD .
Refer to INSTALL INTAKE PLENUM .
Refer to INSTALLING THE TANK VENT VALVE .
Refer to INSTALL CONTROL UNIT BRACKET .
Refer to INSTALL THE INTEGRATED POWER SUPPLY MODULE (PDM) .
Refer to INSTALLING THE DME CONTROL UNIT .
Refer to INSTALLING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER .
Refer to INSTALLING COOLANT FEED LINE FOR EXHAUST TURBOCHARGER .
Refer to INSTALL THE COOLANT RETURN LINE FOR THE EXHAUST TURBOCHARGER .
Refer to INSTALL CATALYTIC CONVERTER .
Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
Refer to IF INSTALLED: INSTALL THE TORSION STRUT ON THE RIGHT, AND ON THE LEFT WHERE REQUIRED .
Refer to INSTALL THE CONNECTING SUPPORTS ON THE TUNNEL .
Refer to INSTALLING CYLINDER HEAD COVER .
Refer to INSTALLING BOTH ACTUATORS .
Refer to INSTALLING ALL SPARK PLUGS .
Refer to PREPARE THE INJECTORS FOR INSTALLATION .
Refer to INSTALLING THE RAIL WITH INJECTORS .
Refer to INSTALLING HIGH PRESSURE PUMP .
Refer to INSTALLING THE HIGH-PRESSURE LINE BETWEEN THE HIGH-PRESSURE PUMP AND THE HIGH-PRESSURE RAIL .
Refer to INSTALLING FUEL DELIVERY LINE .
Refer to INSTALL IGNITION COIL .
Refer to INSTALLING LAMBDA OXYGEN SENSOR .
Refer to INSTALL THE CYLINDER HEAD COVER ACOUSTIC COVER .
Refer to INSTALL THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
Refer to INSTALL CHARGE AIR LINE .
Refer to INSTALL CLEAN AIR PIPE .
Refer to INSTALL RESONATOR .
Refer to FILL THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT
Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT
Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to VENT THE HIGH-TEMPERATURE COOLANT SYSTEM .
Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
Refer to CHECK THE HIGH-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
Refer to CHECKING LOW-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
Refer to CHECK ENGINE OIL LEVEL .
Refer to INSTALLING CENTER BULKHEAD LOWER PART
Refer to INSTALLING THE SEALING FRAME ON LEFT AND RIGHT .
Refer to INSTALLING ACOUSTIC COVER AT REAR .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALL TENSION STRUT ON SHOCK TOWER .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALL LEFT AND RIGHT WIPER ARM .
Refer to INSTALL THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALL ACOUSTIC COVER .
Refer to INSTALL THE FRONT HOOD SEAL AT THE REAR .
Refer to INSTALL THE THRUST FIELD .
Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
Refer to INSTALL REAR UNDERBODY PROTECTION .
Refer to TAKE HOOD OUT OF THE SERVICE POSITION .
