Installing the cylinder head

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

NOTE: RISK OF DAMAGE
Damage to threads.
Fluids in the threaded hole can damage the thread if screws in it are tightened.

Dry threaded holes (e.g. using compressed air).

NOTE: TECHNICAL INFORMATION
Do not remove screw coating.

NOTE: TECHNICAL INFORMATION
When replacing the cylinder head: The complete valve timing and the Valvetronic servomotor are already pre-assembled for new cylinder heads.

NOTE: RISK OF DAMAGE
Damage to guide rails.
The application of great force can damage the guide rails of the timing chain.

When removing and installing the cylinder head, make sure that the cylinder head does not damage the guide rail.

With the help of a support person, use the workshop crane and special tool 0 490 567 (110 020) to insert, position and install cylinder head (1) and exhaust turbocharger.
Ensure that the guide rails of the timing chain are not damaged.

Courtesy of BMW OF NORTH AMERICA, INC.
Thread in and install the washers (2).
Fit new cylinder head bolts (1).
Parts: Cylinder head bolts
Do not wash away the coating of the cylinder head bolts (1).
Lightly oil the contact surfaces of the screw heads of the cylinder head bolts.
Make sure there is no coolant, water or motor oil in the threaded holes of the crankcase.
Insert and install the cylinder head bolts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.
Screw in the cylinder head bolts in sequence (1) to (14).

Tighten cylinder head bolts with the special tool 0 495 747 (11 8 580) and 0 490 504 (00 9 120) in the order (1) to (14).

Fig 1: Cylinder Head Bolts Tightening Sequence (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Cylinder head to crankcase
M11 Observe tightening sequence! Fit new cylinder head bolts.	1. Joining torque:	30 Nm
	2. Angle of rotation:	90°
	3. Angle of rotation:	180°

Replace cylinder head bolts (1) by (5).
Parts: Cylinder head bolts
Make sure no coolant, water or motor oil is in the threaded holes of the timing case cover.
Screw in cylinder head bolts (1) to (5).

Tighten the cylinder head bolts in the sequence (1) to (5).

Fig 2: Cylinder Head Bolts Tightening Sequence (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Cylinder head bolt to timing case cover
M8x40 Replace screws.	Tightening torque:	19 Nm

Feed in the camshaft sensor wheel (1) on the intake camshaft (2) and position.

Courtesy of BMW OF NORTH AMERICA, INC.
Rotate intake camshaft, if necessary in the position shown.
The recess (2) must point up.

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Camshaft sensor wheel to intake camshaft
M4x35	Tightening torque:	4.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace bearing journal (1).
Parts: Bearing journal

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install bearing journal (1) on the guide rail (2).

Tighten the bearing journals (1).

TIGHTENING TORQUES SPECIFICATION

Bearing journal to cylinder head
Bearing journal Replace the bearing journal!	Tightening torque:	22 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Insert and install the slide rail (2).

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Sliding rail to cylinder head
M6x16	Tightening torque:	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Guide in and install cover (2).

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Cover to rear cylinder head
M6	Tightening torque:	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

Courtesy of BMW OF NORTH AMERICA, INC.

Guide in and install the wiring harness section (2) for sensor system 1.

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Cable bracket on rear cylinder head/transmission
M6x20	Tightening torque:	8 Nm

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the transmission wiring harness (2) on the wiring harness section (3) for sensor system 1.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Cable bracket on rear cylinder head/transmission
M6x20	Tightening torque:	8 Nm

CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!

Route the positive battery cable without abrasions and do not trap.

Insert and install the positive battery cable (3).
Secure clamps (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
Connect connectors (2) and lock.
The connector must engage audibly.
Feed in and position the wiring harness section (4) of sensor system 1.
Secure clamps (3).
Connect and lock coolant line (1).
Make sure that the coolant line (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the sealing ring (1) on the coolant feed line (2) for the exhaust turbocharger with the special tool 0 496 714 (00 9030).
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the coolant feed line for the exhaust turbocharger (3).

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Coolant feed line to crankcase
M6X12	Tightening torque:	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (2).

TIGHTENING TORQUES SPECIFICATION

Coolant feed line to crankcase
M6X12	Tightening torque:	8 Nm

Using the special tool 0 496 714 (00 9 030), replace the sealing ring (1) on the oil feed line (2) for the exhaust turbocharger.
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install oil feed line (1) for the exhaust turbocharger.
Replace sealing ring on coolant return line (2) with special tool 0 496 714 (00 9 030).
Parts: Sealing ring
Insert and install the coolant return line (2) for the exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.

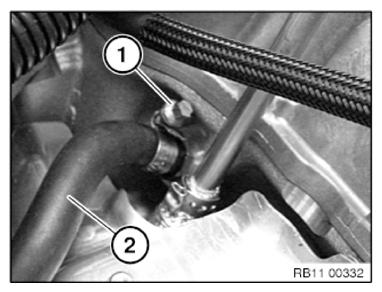

Feed in screw (1) with special tool 2 470 546 and tighten hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.
Position special tool 2 470 546 on the screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) with the special tool 2 470 546.

TIGHTENING TORQUES SPECIFICATION

Coolant return line/oil feed line to exhaust turbocharger
M6x12	Tightening torque:	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the coolant return line (1) for the exhaust turbocharger and lock.
Make sure that the coolant return line (1) engages audibly.
Replace screw (1) and (2).
Parts: screw
Feed in the support (3) and position it.

Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Exhaust turbocharger support to crankcase
M8x20 Replace screws.	Tightening torque:	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Exhaust turbocharger to support
M8x25 Replace screw.	Tightening torque:	19 Nm

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Coolant return line holder to crankcase
M6X12	Tightening torque:	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen the screws (1) from the special tool 2 459 012
Guide out and remove the special tool 2 459 012 on the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work:

Refer to ADJUSTING THE CAMSHAFTS WITH THE SPECIAL TOOL (540i) or ADJUSTING THE CAMSHAFTS WITH THE SPECIAL TOOL (540i xDrive) .
Refer to INSTALLING THE INTAKE ADJUSTER (540i) , INSTALLING THE INTAKE ADJUSTER (540i xDrive, 2017-2020) , or INSTALLING THE INTAKE ADJUSTER (540i xDrive, 2021-2022) .
Refer to INSTALLING THE VANOS CENTRAL VALVE OF THE INTAKE ADJUSTER .
Refer to INSTALLING EXHAUST CAMSHAFT ADJUSTER (540i) , INSTALLING EXHAUST CAMSHAFT ADJUSTER (540i xDrive, 2017-2020) , or INSTALLING EXHAUST CAMSHAFT ADJUSTER (540I XDRIVE, 2021-2022) .
Refer to INSTALLING THE VANOS CENTRAL VALVE OF THE EXHAUST CAMSHAFT ADJUSTER .
Refer to PRE-TENSIONING THE TIMING CHAIN WITH THE SPECIAL TOOL .
Refer to TIGHTENING THE VANOS CENTRAL VALVE OF THE EXHAUST CAMSHAFT ADJUSTER .
Refer to TIGHTENING THE VANOS CENTRAL VALVE OF THE INTAKE ADJUSTER .
Refer to DISASSEMBLING ALL SPECIAL TOOLS .
Refer to INSTALLING CHAIN TENSIONER .
Refer to CHECKING THE TIMINGS OF THE CAMSHAFT (540i) , CHECKING CAMSHAFT TIMING (540i xDrive, 2017-2020) , or CHECKING THE TIMINGS OF THE CAMSHAFT (540i xDrive, 2021-2021) .
Refer to INSTALLING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER (540i) , INSTALLING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER (540i xDrive, 2017-2020) , or INSTALLING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER (540i xDrive, 2021-2022) .
Refer to INSTALLING CATALYTIC CONVERTER .
Refer to INSTALLING THE COOLANT LINE BETWEEN THE CYLINDER HEAD AND THE COOLANT PUMP .
Refer to INSTALLING THE INTAKE PLENUM .
Refer to INSTALLING THE TANK VENT VALVE .
Refer to INSTALLING CONTROL UNIT BRACKET (540i) , INSTALLING CONTROL UNIT BRACKET (540i xDrive, 2017-2020) , or INSTALLING THE CONTROL UNIT HOLDER (540i xDrive, 2021-2022) .
Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) (2017-2020) or INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) (2021-2022) .
Refer to INSTALLING THE DME CONTROL UNIT (2017-2020) or INSTALLING THE DME CONTROL UNIT (2021-2022) .
Refer to INSTALLING CYLINDER HEAD COVER (540i) or INSTALLING CYLINDER HEAD COVER (540i xDrive) .
Refer to INSTALLING BOTH ACTUATORS .
Refer to PREPARING THE INJECTORS FOR INSTALLATION .
Refer to INSTALLING THE HIGH-PRESSURE RAIL WITH INJECTORS OF THE CYLINDERS 4 TO 6 .
Refer to INSTALLING RAIL WITH INJECTORS OF CYLINDERS 1 TO 3 .
Refer to INSTALLING HIGH PRESSURE PUMP .
Refer to INSTALLING FUEL DELIVERY LINE .
Refer to INSTALLING THE HIGH-PRESSURE LINE BETWEEN THE HIGH-PRESSURE PUMP AND THE HIGH-PRESSURE RAIL .
Refer to INSTALLING ALL SPARK PLUGS (2017-2020) or INSTALLING ALL SPARK PLUGS 2021-2022) .
Refer to INSTALLING ALL IGNITION COILS .
Refer to INSTALLING THE OXYGEN SENSOR MONITOR .
Refer to INSTALLING LAMBDA OXYGEN SENSOR .
Refer to INSTALLING THE HOLDER OF THE POSITIVE BATTERY CABLE .
Refer to INSTALLING ACOUSTIC COVER AT REAR .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALLING TENSION STRUT ON SPRING STRUT DOME .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
Refer to INSTALLING CHARGE AIR LINE .
Refer to INSTALLING BOTTOM CLEAN AIR PIPE .
Refer to INSTALLING THE RESONATOR WITH THE TOP CLEAN AIR PIPE .
Refer to INSTALLING THE INTAKE FILTER HOUSING (TENSION STRUT REMOVED ON SHOCK TOWER) .
Refer to INSTALLING FAN COWL .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING FRONT CROSS CONNECTION .
Refer to INSTALLING BOTH FRONT-END STRUTS .
Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
Refer to IF INSTALLED: INSTALL THE TORSION STRUT ON THE RIGHT, AND ON THE LEFT WHERE REQUIRED .
Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
Refer to CHECKING ENGINE OIL LEVEL .
Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
Refer to INSTALLING THE THRUST FIELD .
Refer to INSTALLING REAR UNDERBODY PROTECTION .
Refer to INSTALLING ACOUSTIC COVER .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
