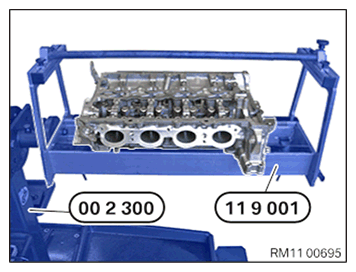

Disassembling the cylinder head from the special tool
- Unfasten screw connection.
- Lift cylinder head from special tool with workshop crane 0 494 362 (11 9 000)
.NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
- Install guide rail (2) from above.
- Replace bearing journal (1).
Parts: Bearing journal
- Tighten the bearing journals (1).TIGHTENING TORQUES SPECIFICATION
Bearing journal to cylinder head Replace the bearing journal! Tightening torque 20 Nm
Follow-up Work
- Refer to SEALING THE OIL DUCT .
- Refer to CLEAN SEALING SURFACES .
- Refer to REPLACE CYLINDER HEAD GASKET .
- Refer to INSTALLING THE CYLINDER HEAD .
- Refer to ATTACH THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER .
- Refer to BLOCKING THE CAMSHAFTS
- Refer to INSTALLING THE INTAKE ADJUSTER .
- Refer to INSTALL EXHAUST CAMSHAFT ADJUSTER .
- Refer to PRELOAD TIMING CHAIN .
- Refer to TIGHTENING THE VANOS CENTRAL VALVE .
- Refer to DISASSEMBLING ALL SPECIAL TOOLS
- Refer to INSTALLING CYLINDER HEAD COVER .
- Refer to PREPARE THE INJECTORS FOR INSTALLATION .
- Refer to INSTALLING THE RAIL
- Refer to PREPARE FOR THE INSTALLATION OF THE HIGH PRESSURE PUMP
- Refer to INSTALL HIGH PRESSURE PUMP .
- Refer to INSTALLING FUEL DELIVERY LINE .
- Refer to INSTALLING THE HIGH-PRESSURE LINE BETWEEN THE HIGH-PRESSURE PUMP AND THE HIGH-PRESSURE RAIL .
- Refer to INSTALLING THE IGNITION COILS .
- Refer to INSTALLING BOTH ACTUATORS .
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALL CONTROL UNIT BRACKET .
- Refer to INSTALL THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING OIL FEED LINE FOR EXHAUST TURBOCHARGER (ENGINE ENCAPSULATION REMOVED)
- Refer to INSTALL FRONT ENGINE ENCAPSULATION .
- Refer to INSTALL THE COOLANT FEED LINE FOR THE EXHAUST TURBOCHARGER (COOLANT RETURN LINE REMOVED)
- Refer to INSTALL THE COOLANT RETURN LINE FOR THE EXHAUST TURBOCHARGER (AUXILIARY COOLANT PUMP REMOVED)
- Refer to INSTALLING AUXILIARY COOLANT PUMP FOR THE EXHAUST TURBOCHARGER .
- Refer to INSTALL THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
- Refer to CONNECT THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT
- Refer to CONNECT THE COOLANT LINE OF HIGH-TEMPERATURE COOLANT CIRCUIT
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLER DEVICE
- Refer to FILL THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLER DEVICE
- Refer to INSTALLING CENTER BULKHEAD LOWER SECTION
- Refer to FASTENING HIGH-VOLTAGE CABLES ON THE ELECTRICAL MACHINE ELECTRONICS .
- Refer to INSTALLING RIGHT SEALING FRAME
- Refer to INSTALLING LEFT SEALING FRAME
- Refer to INSTALLING THE CENTER BULKHEAD UPPER PART
- Refer to INSTALL TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING COWL PANEL COVER .
- Refer to INSTALL LEFT AND RIGHT WIPER ARM .
- Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALL THE SEAL FOR THE BONNET .
- Refer to INSTALL CHARGE AIR LINE .
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to INSTALL RESONATOR .
- Refer to TIGHTENING THE OIL DRAIN PLUG
- Refer to INSTALL CATALYTIC CONVERTER .
- Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
- Refer to INSTALL THE REAR AXLE COVER .
- Refer to IF INSTALLED: INSTALL THE TORSION STRUT ON THE RIGHT AND ON THE LEFT AS NEEDED .
- Refer to INSTALL THE CONNECTING SUPPORTS ON THE TUNNEL
- Refer to INSTALLING THE REAR STIFFENING PLATE .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT STIFFENING PLATE .
- Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to INSTALLING THE MONITORING OXYGEN SENSOR .
- Refer to INSTALL FRONT OXYGEN SENSOR .
- Refer to INSTALLING THE HEAT SHIELD ON THE EXHAUST MANIFOLD .
- Refer to INSTALL THE CYLINDER HEAD COVER ACOUSTIC COVER
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to TOPPING UP THE MOTOR OIL
- Refer to INSTALL COVER FOR THE DME CONTROL UNIT .
- Refer to INSTALL ACOUSTIC COVER .
- Refer to CHECK ENGINE OIL LEVEL .
- Refer to BLEEDING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to BLEED THE HIGH-TEMPERATURE COOLANT CIRCUIT .
